What is an Insert Moulding Machine?

An Insert Moulding Machine is used to produce plastic parts by injecting molten plastic around pre-placed inserts such as metal components, creating a strong and durable bond in a single process.

What is an Insert Plastic Moulding Machine?

An Insert Plastic Moulding Machine is designed specifically for insert moulding applications, allowing plastic material to encapsulate metal or other components with high precision and strength.

What are the advantages of insert moulding?

Insert moulding offers improved strength, reduced assembly cost, elimination of secondary operations, enhanced durability, and better design flexibility.

What materials are used in insert moulding machines?

Common materials include ABS, nylon, polypropylene (PP), polycarbonate (PC), and engineering plastics used for high-performance applications.

What industries use insert plastic moulding machines?

Industries such as automotive, electronics, electrical components, medical devices, consumer goods, and industrial manufacturing widely use these machines.

What is the difference between insert moulding and overmoulding?

Insert moulding places a component into the mould before injection, while overmoulding molds material over an already moulded part.

How can I choose the right insert moulding machine?

Selection depends on clamping force, shot size, material type, insert size, production volume, and automation needs.

What is the price of an Insert Moulding Machine?

The approximate starting price of an Insert Moulding Machine (ABS-VV Series) is ₹7,45,000. The final price depends on specifications and customization.

ABS-VV Series

ABS-VV Series

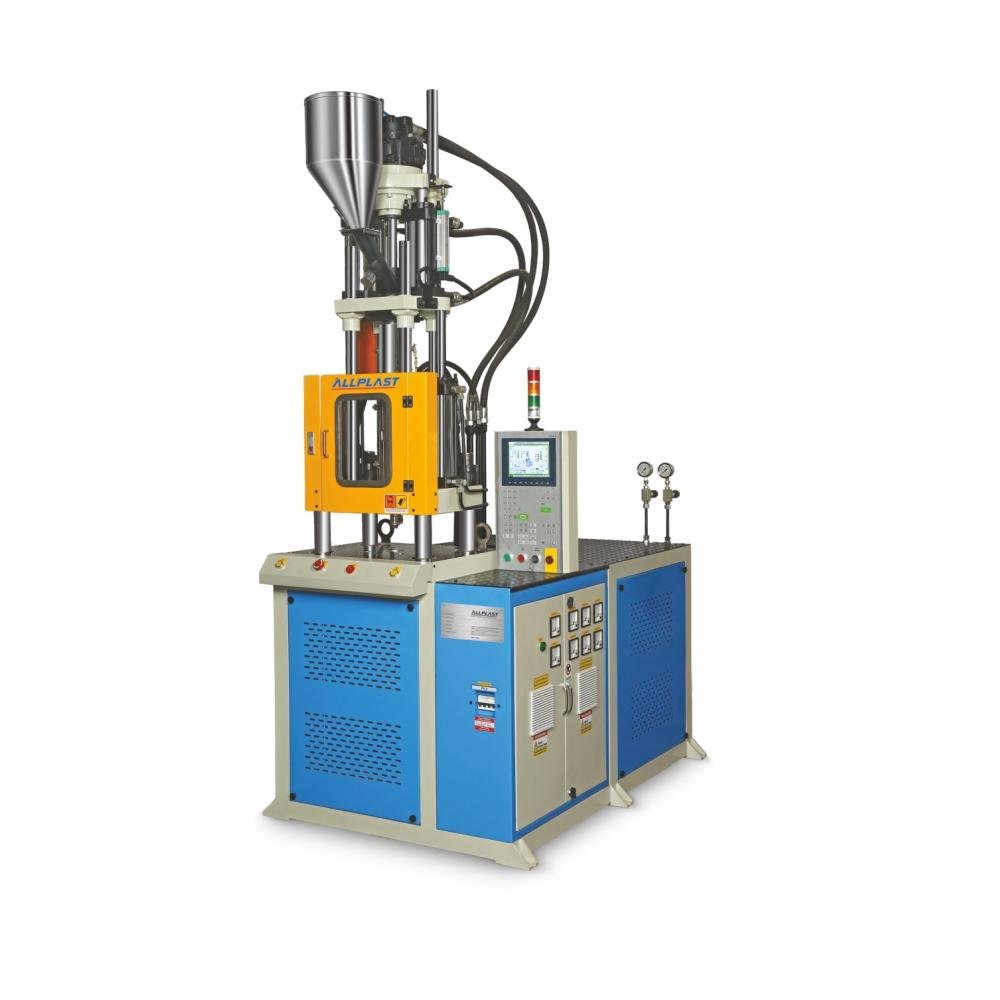

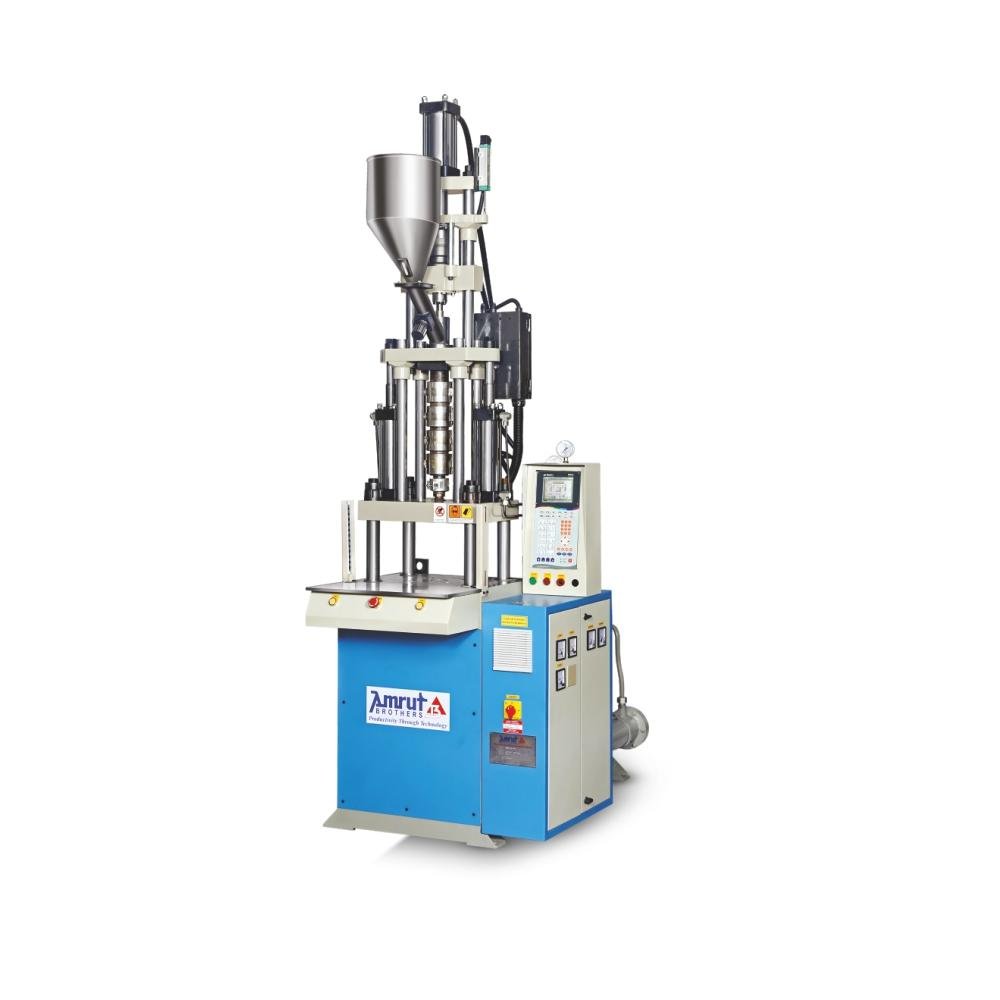

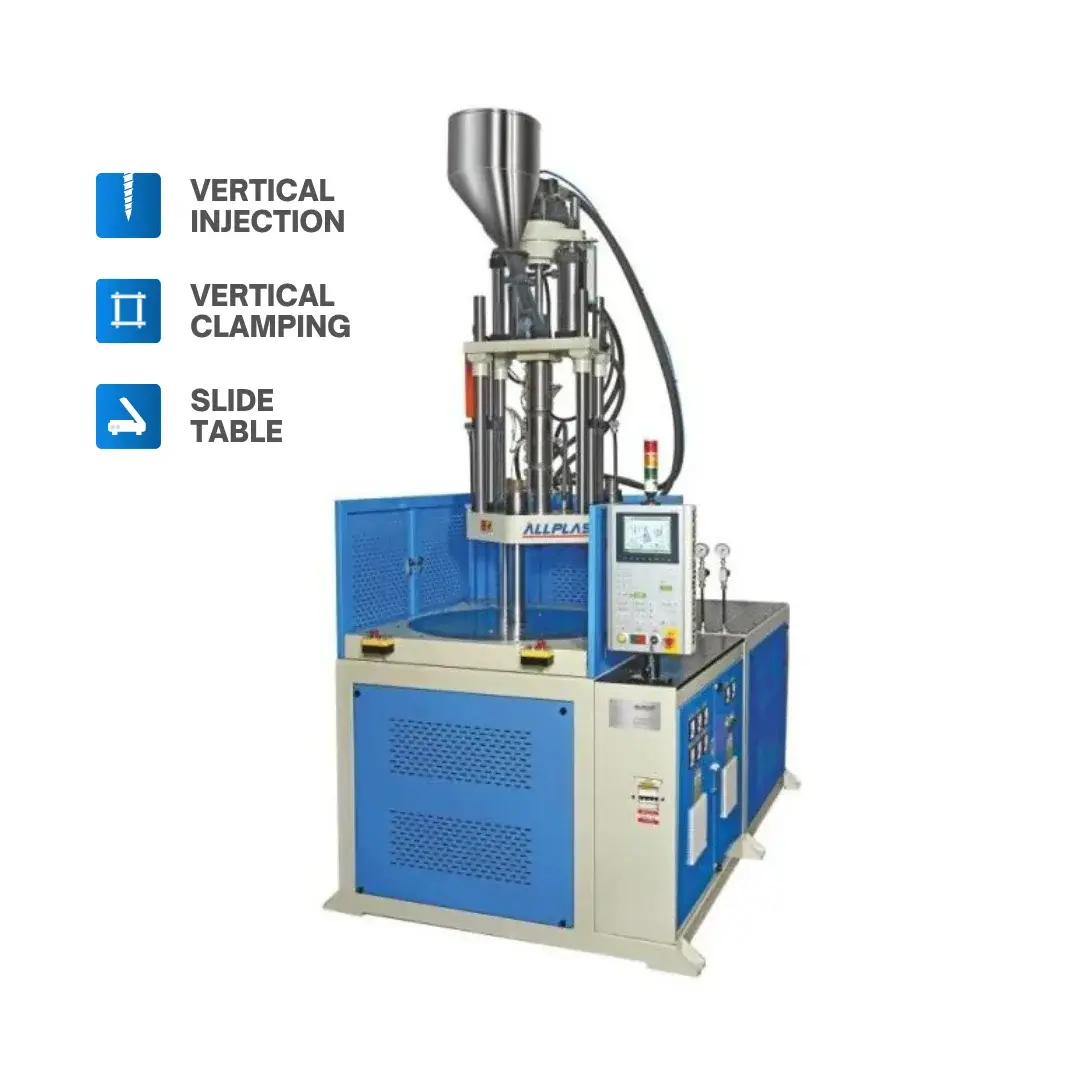

Vertical Insert Moulding Machine

The Vertical insert moulding machine offers a clamping force range of 15–250 tons with a robust four-column vertical clamping system. Designed as a high-performance insert plastic molding machine, it utilizes screw-type injection for precise and consistent material flow. The large L/D ratio ensures uniform melting and smooth operation. Equipped with advanced microprocessor controls, the machine delivers energy-efficient performance along with integrated hand safety protection for enhanced operator safety.

Vertical Insert Moulding Machine Features

Injection & clamping with transducer.
Pressure & flow controlled through PLC.
Keba plc with all standard features.
High-torque hydraulic piston motor.

Request Quote

WhatsApp Inquiry

Key Highlights

15T – 250T Clamping Force

Four Column Vertical Clamping

Screw Type Injection System

High L/D Ratio for Homogenous Melt

Smooth & Balanced Operations

Fully Microprocessor Controller

Energy Saving Hydraulic System

Hand Protection Safety Features

Clamping Force	15T – 250T
Injection System	Vertical Screw Type
Screw Diameter	22mm – 65mm
Shot Weight	34g – 740g
Hydraulic Pressure	Up to 2373 kg/cm²
Control System	Fully Microprocessor Controller
Safety	Hand Protection System

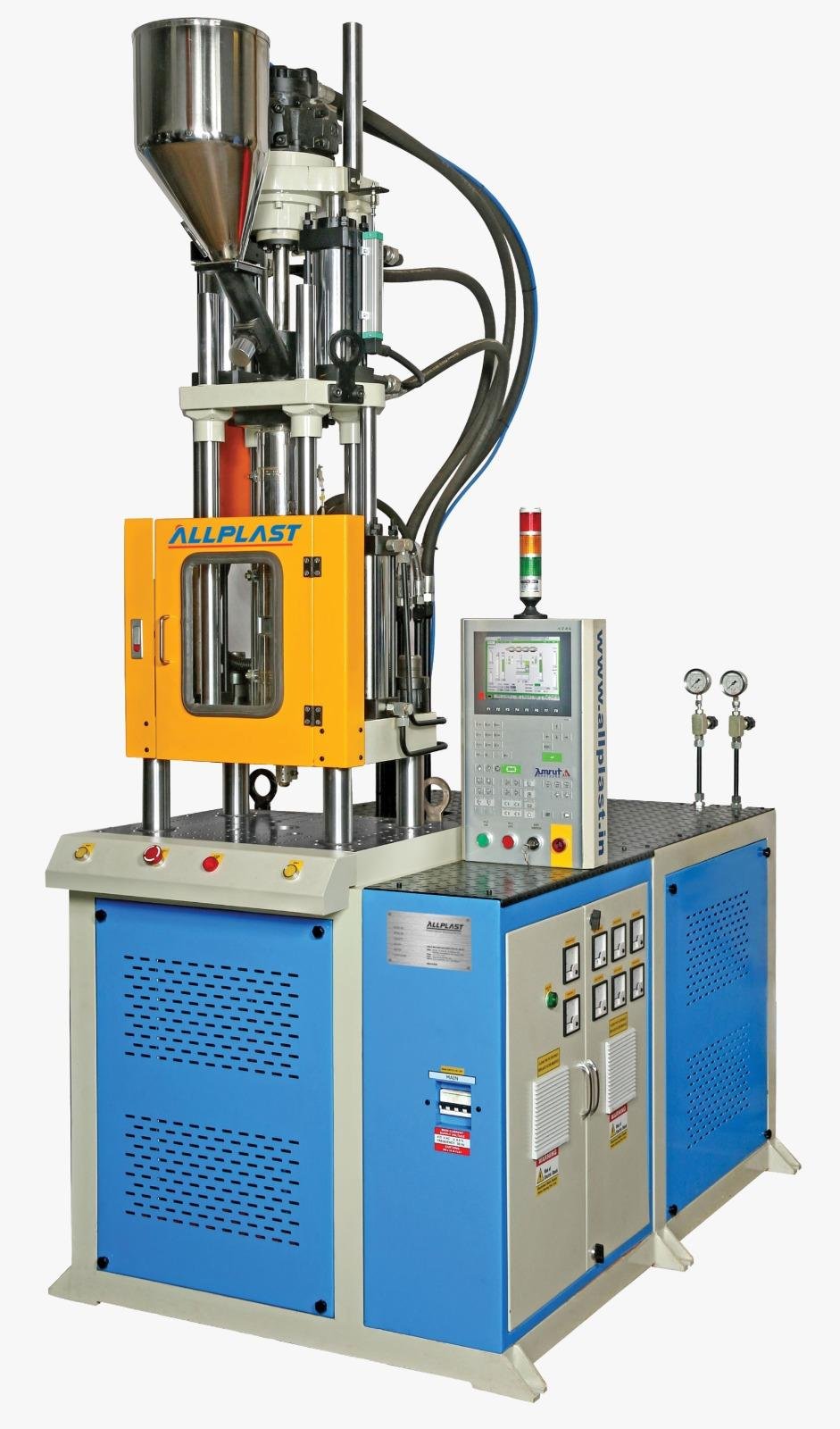

ABS-VV Series vertical injection moulding machine is specially engineered for precision insert moulding applications requiring stable vertical clamping, smooth injection control, and energy-efficient hydraulic operation. The machine is designed with a heavy-duty four-column vertical structure that ensures excellent mould stability and high production accuracy.

Equipped with an advanced screw type injection system and fully microprocessor-based controller, the ABS-VV Series delivers consistent injection performance, homogeneous material melting, and user-friendly machine operation. The hydraulic system is optimized for energy saving, pressure stability, and smooth machine movement during continuous production cycles.

This machine is suitable for engineering plastics, insert moulding applications, automotive components, electrical products, industrial parts, and precision moulded products. Safety-enhanced features, programmable controls, and reliable temperature regulation systems help improve operational efficiency, product quality, and long-term machine performance.
